EcoFlow

EcoFlow 3.6 KW Power Kits

EcoFlow 3.6 KW Power Kits

Regular price $6,499.00
Regular price $7,696.00 Sale price $6,499.00
Sale Sold out
Shipping calculated at checkout.

Hassle-free, high-powered EcoFlow 3.6 kW Power Kits are the world's first integrated, plug-and-play 48V off-grid power solution designed for camper vans, motor homes, trailers and RVs of any kind.

  • 4 Charging methods include up to 4800W solar, 1000W alternator, 3000W shore power, and 1800W Smart Generator input.
  • Plug-and-play for simple assembly
  • Compact, integrated design, all-in-one inverter hub
  • Save space with stackable batteries
  • 48V system, a safer, smaller power solution
  • Real-time and remote smart controls

CHOOSE YOUR KIT

You can choose between these variants of the EcoFlow 3.6 kW Power Kits. Each Kit version comes with 1x 5kWH LFP Battery(includes 1.5m battery cable, wall/floor mounting brackets, and straps.)

You can also upgrade your system by adding an additional 5kWh battery, expanding your total capacity to 10kWh or 15kWh based on your needs.

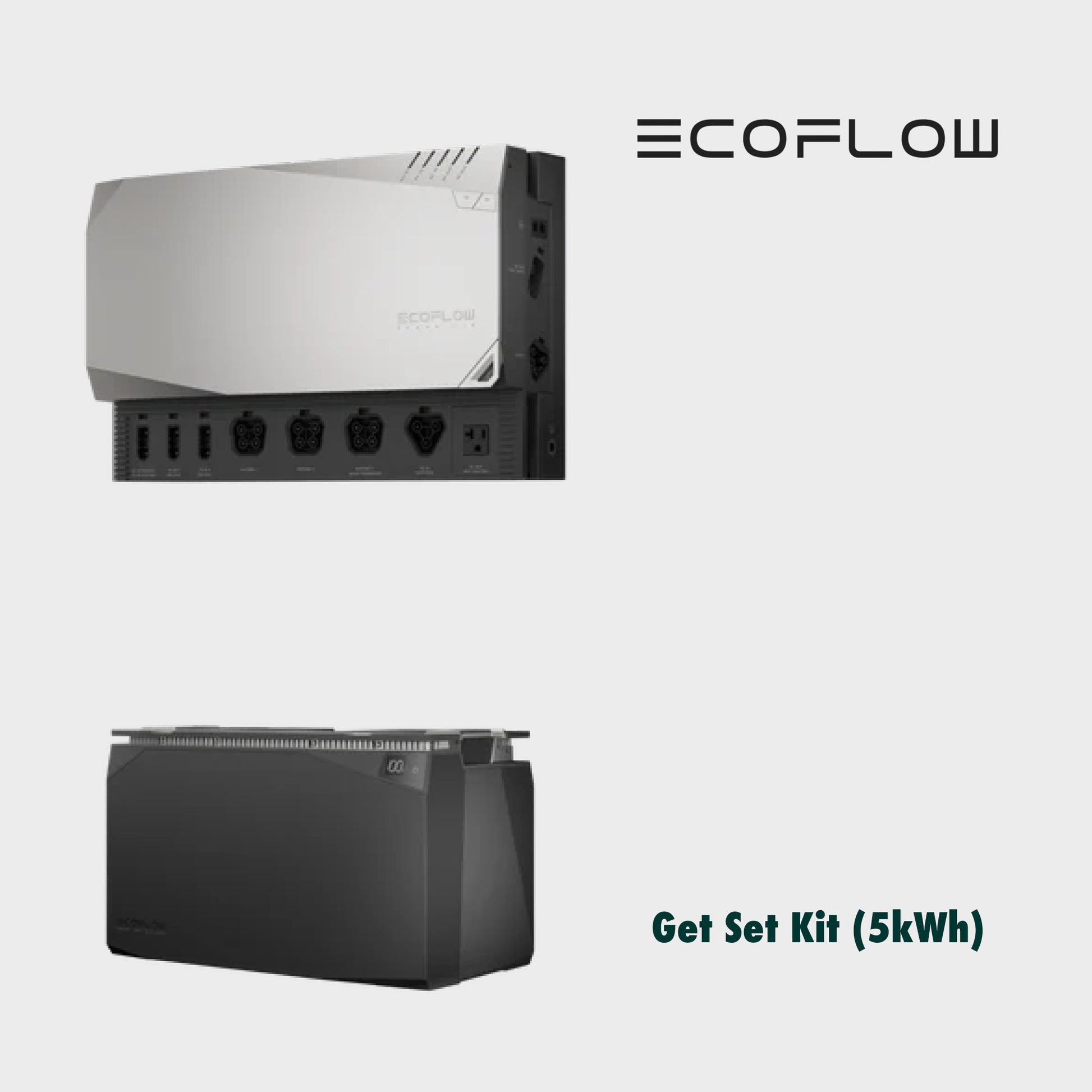

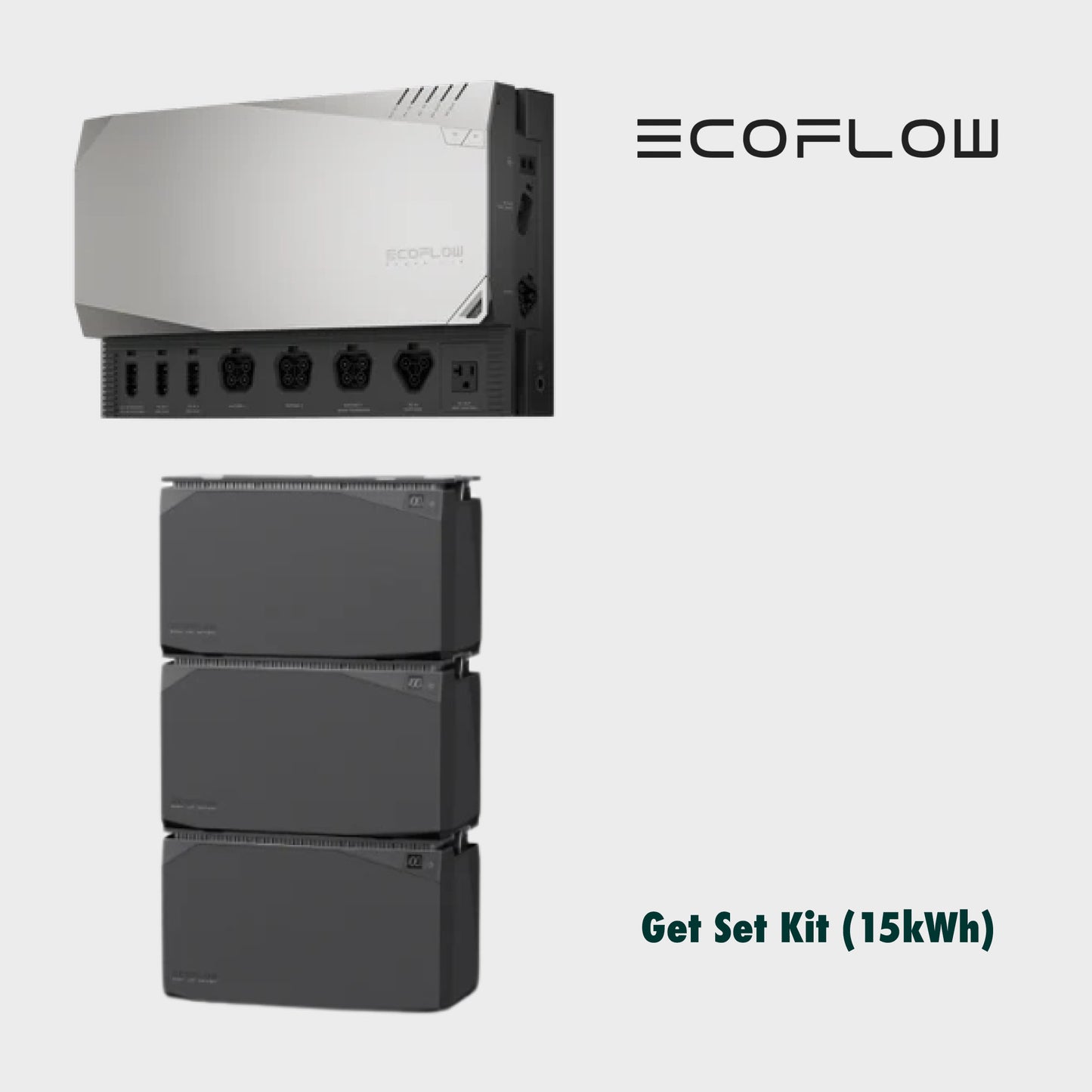

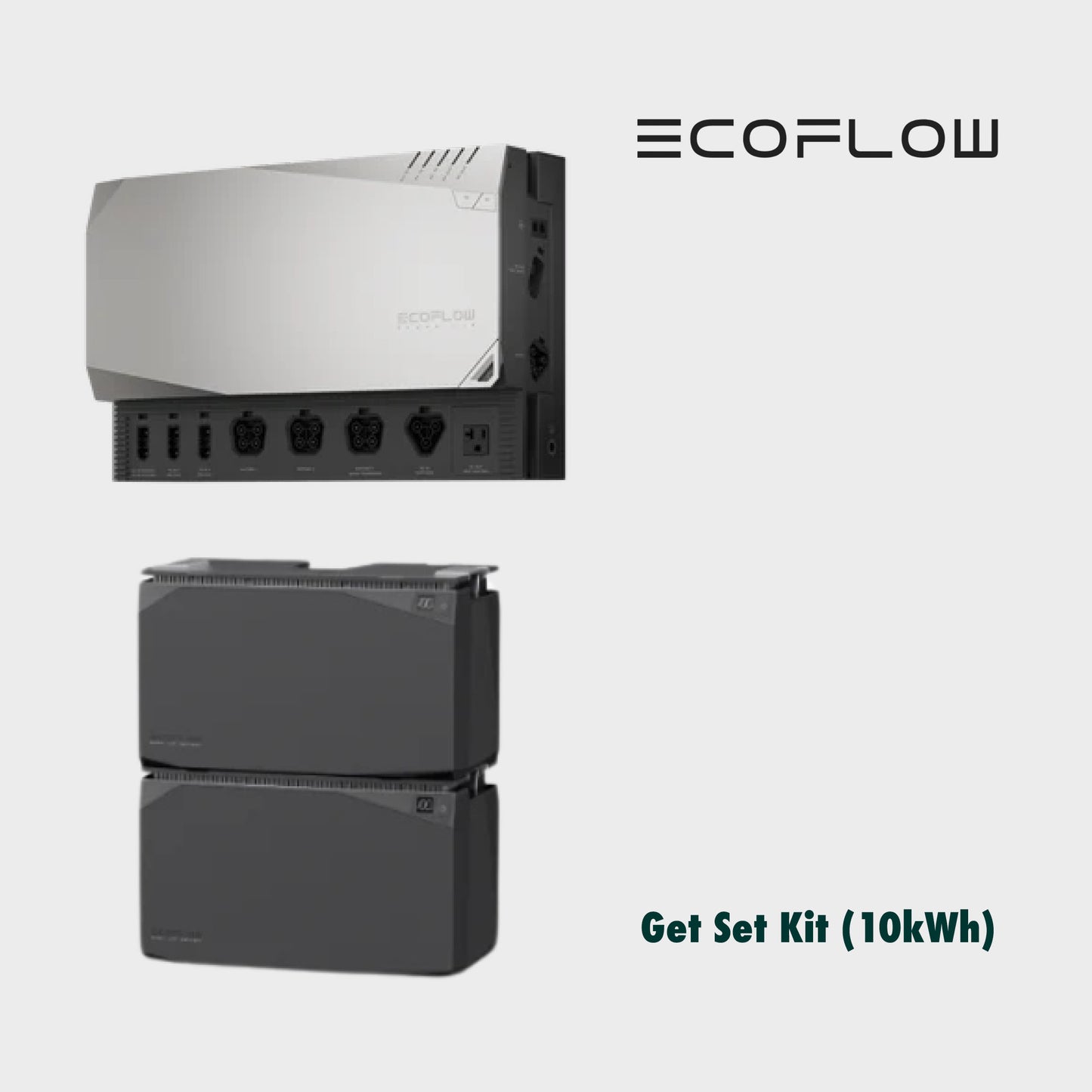

  • Get Set Kit includes - 1x Power Hub, 1x 5kWh LFP Battery, 1x Cable Pack

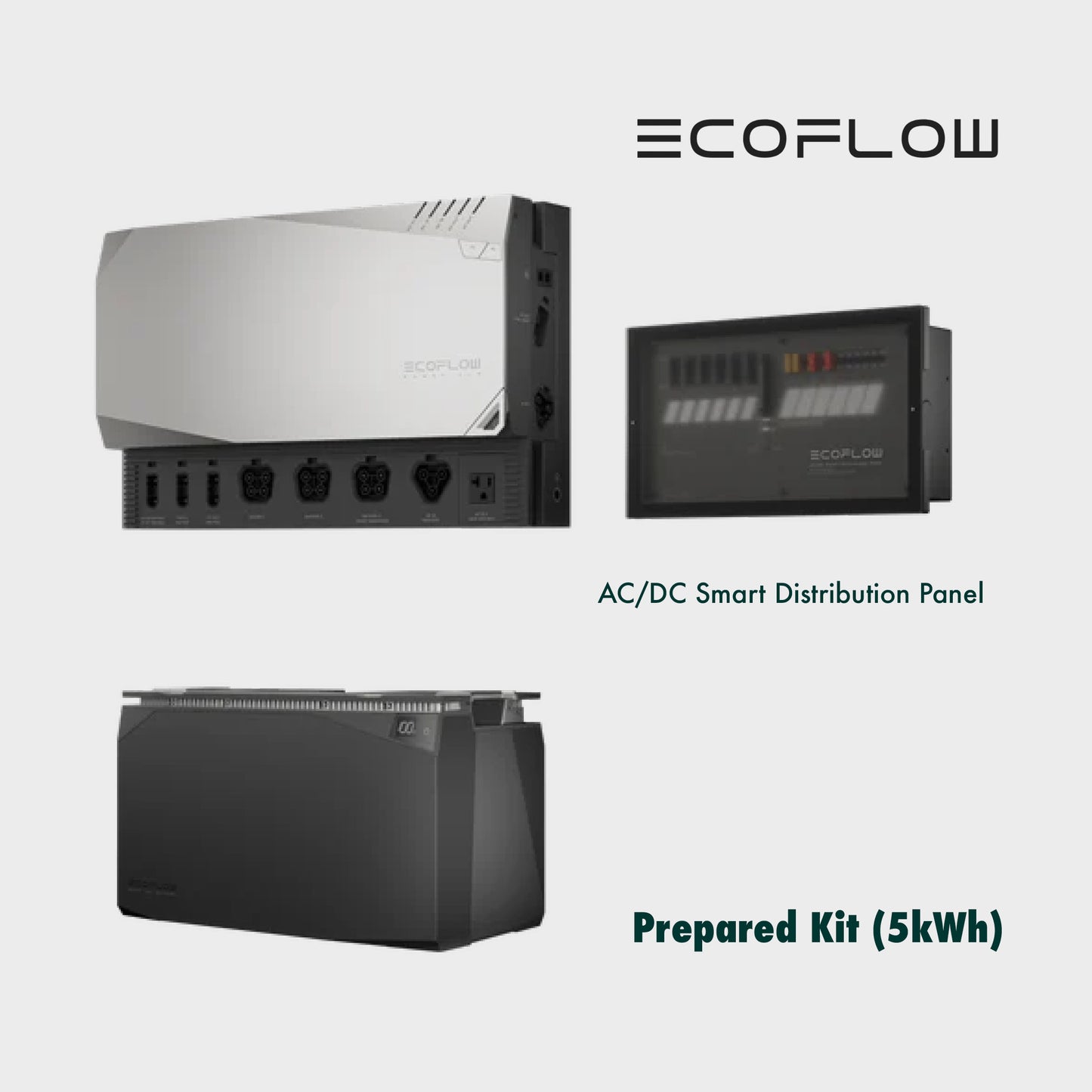

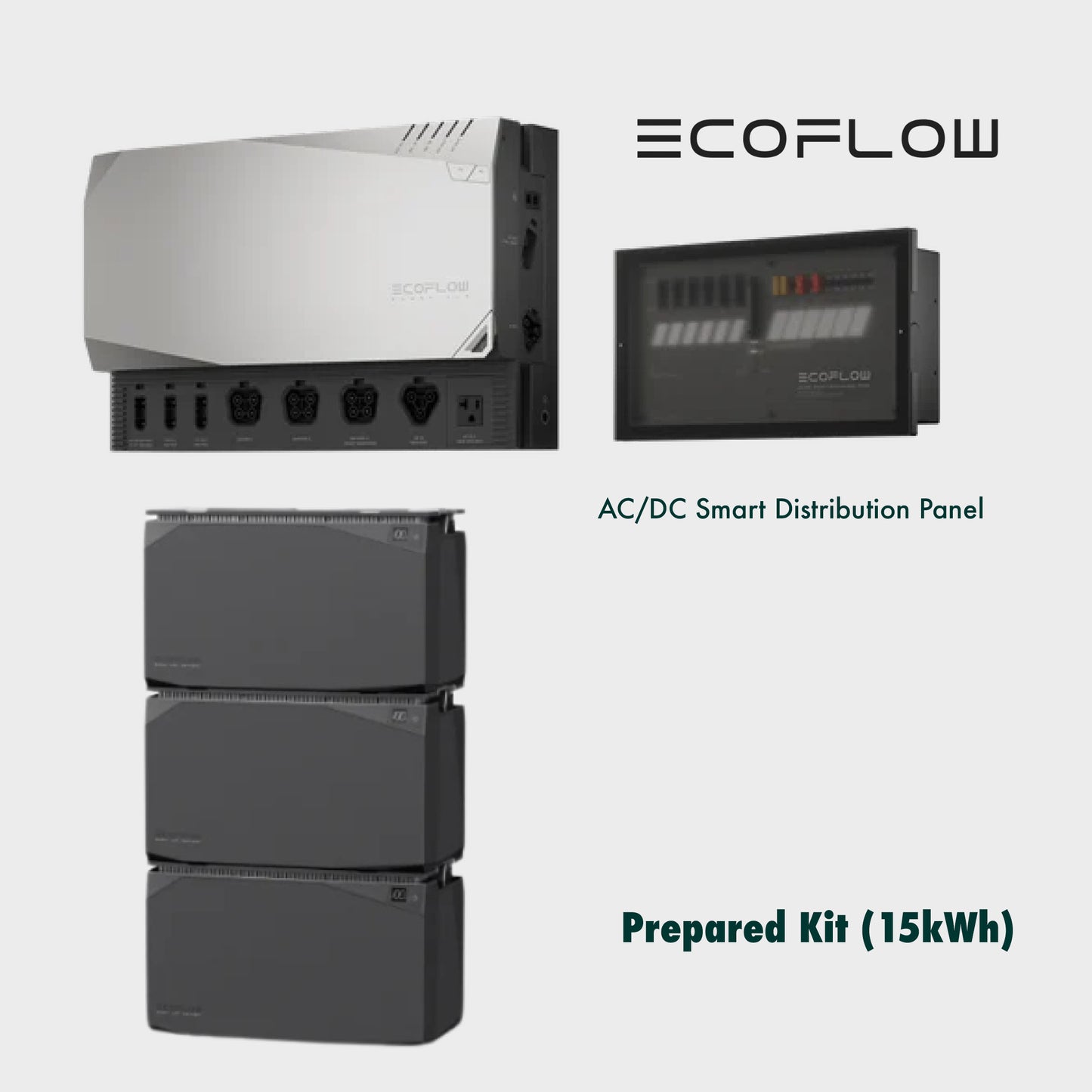

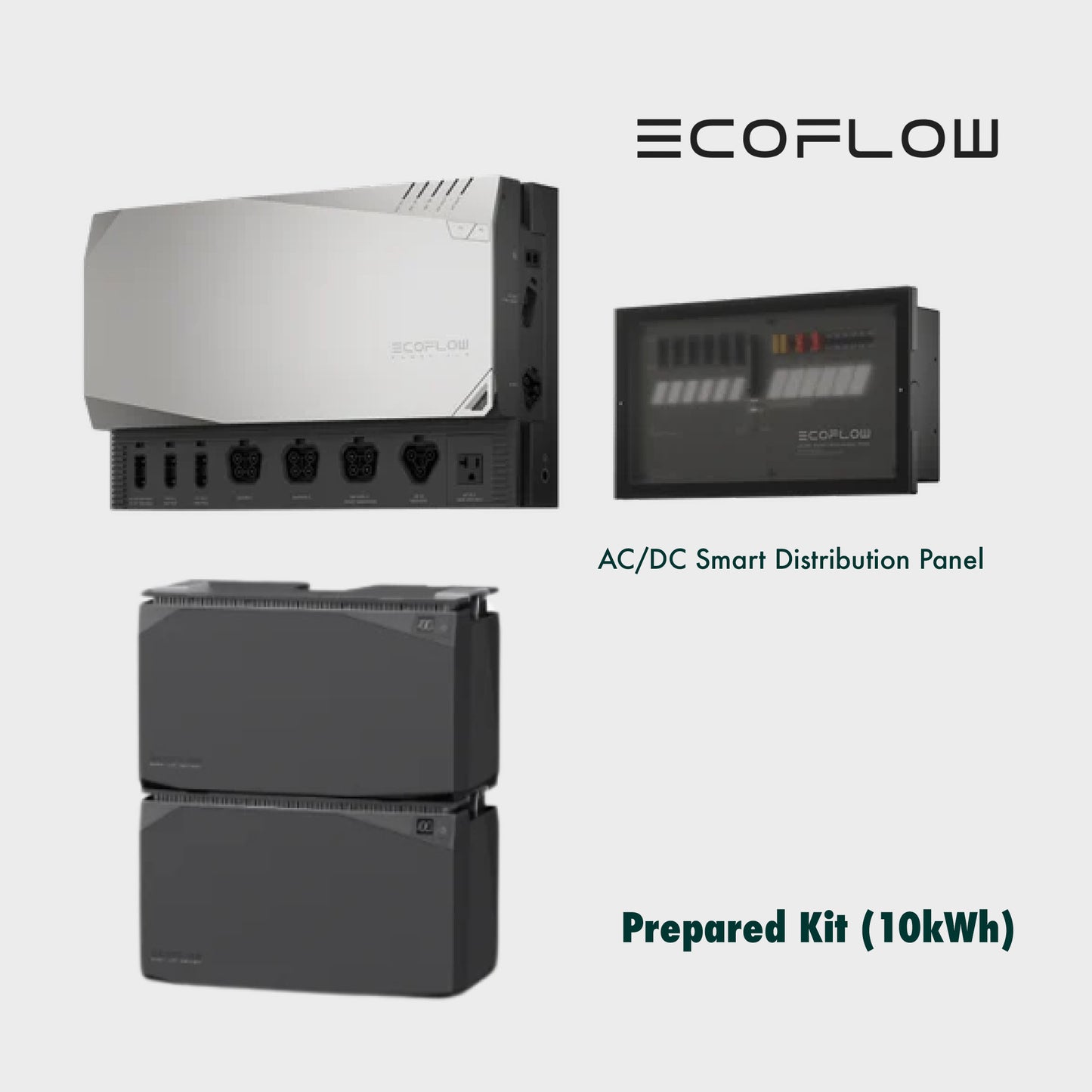

  • Prepared Kit includes - 1x Power Hub, 1x 5kWh LFP Battery, 1x Cable Pack, 1x AC / DC Smart Distribution Panel, 1x Battery Mounting Strap

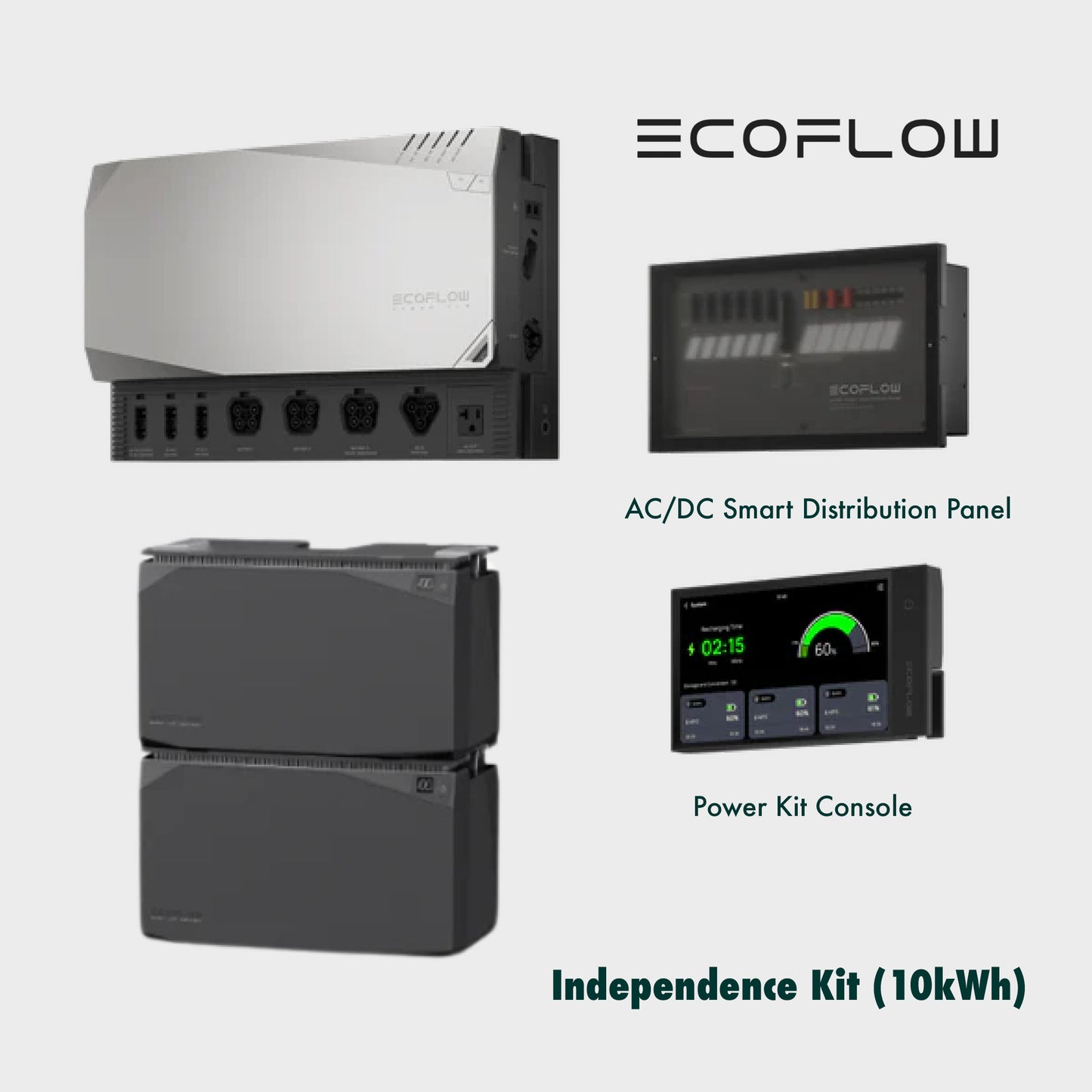

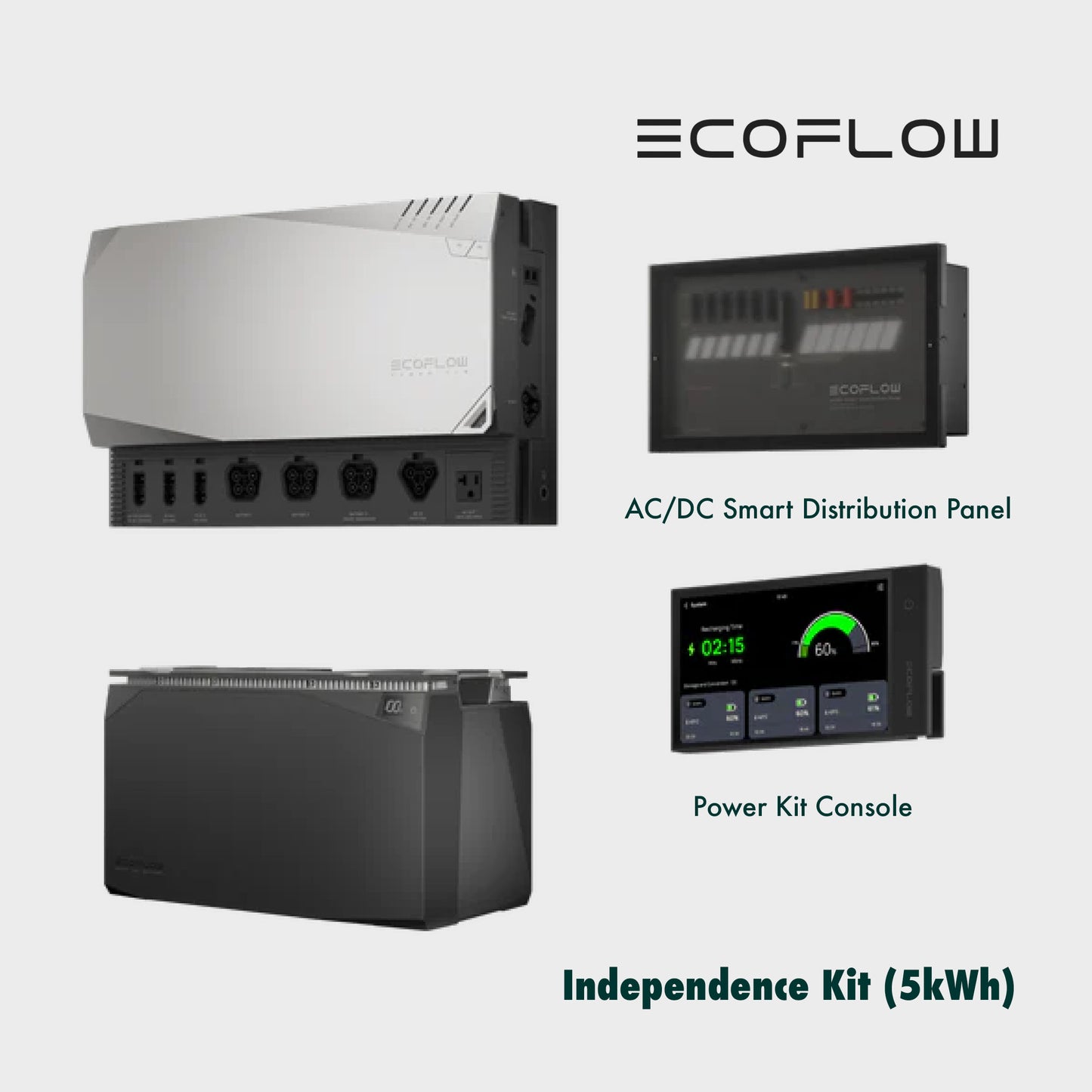

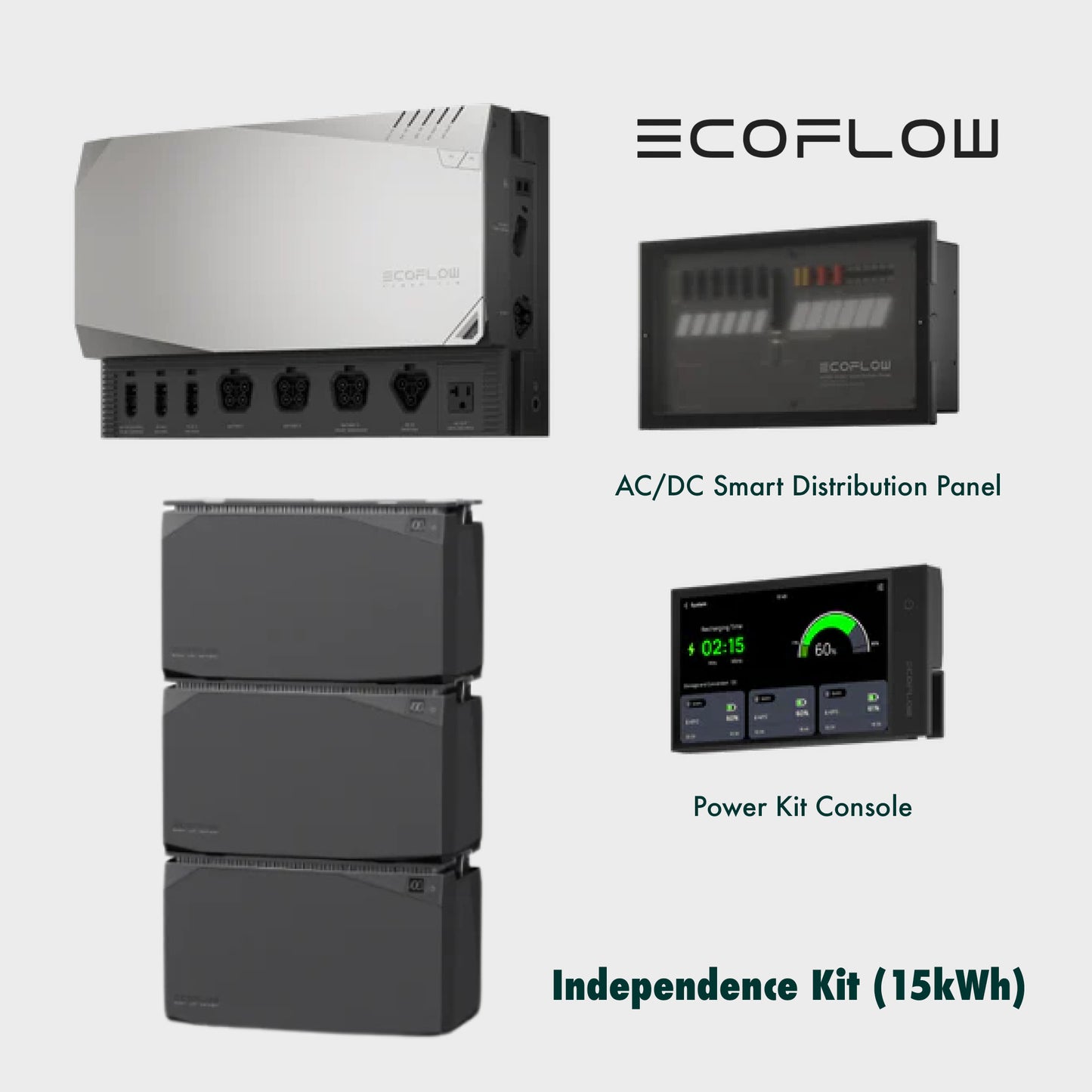

  • Independence Kit includes - 1x Power Hub, 1x 5 kWh LFP Battery, 1x Cable Pack, 1x AC / DC Smart Distribution Panel, 1x Power Kit Console, 1x Battery Mounting Strap.

SPECIFICATIONS

Power Kits

Tests and Certifications: UL Standard, FCC,ICES

AC Main Output/Frequency: Pure Sine Wave, 3600W (Surge 7200W), 120V, 50Hz/60Hz

DC Main Output: 13.6V/70A 1000W Max: 26.4V/60A. 1600W Max

AC Main Input: X-Stream Fast Charging 3000W Max, 30A Max

AC Main Input Voltage/Frequency: 100-120V, 50Hz/60Hz

Operating Temperature: -13°F-140°F

Discharge Temperature: -13°F-140°F

Charge Temperature: -13°F-140°F

Storage Temperature: -13°F-140°F

5 kWh LFP Battery

Capacity: 5120Wh (51.2V, 100Ah)

Cell Chemistry: Lithium Iron Phosphate

Cycle Life: ~3500 Cycles up to 80% Capacity

Protection Level: IP54

Test and Certifications:UL Standard, FCC, CE, E-Mark, UKCA, UN38.3, RCM, PSE

Storage Temperature (F): -4°F–140°F

Storage Temperature (C): -20°C–60°C

Operating Temperature (F): -4°F-122°F

Operating Temperature (C): -20℃-60℃

Power Hub

Dimensions (in): 11.8 x 18.9 x 5.5 (Height x Width x Depth)

Testing & Certifications: CE, UL, FCC

Wi-Fi: Supported

Bluetooth: Supported

OUTPUT

AC Main Output / Frequency: Pure Sine Wave, 3600W (surge 6000W), 230V~, 50Hz/60Hz

DC Main Output: 13.6V/70A 1000W Max; 26.4V/60A, 1500W Max

INPUT

AC Main Input: X-Stream Fast Charging 3000W Max, 16A Max

AC Main Input Voltage/frequency: 220-240V, 50Hz/60Hz

Solar Charging Input: 15-150V 30A, 1600W Max

Solar Charging Input: 15-150V 30A, 1600W max each port, up to 4800W total

Alternator Charging Input: 13V-60V, 60A/30A/30A, up to 4800W total

TEMPERATURE

Best Operating Temperature: 20°C - 30°C

Discharge Temperature: -25°C - 60°C

Charge Temperature: -25°C - 60°C

Storage Temperature: -25°C - 60°C

Net Weight: 31 lbs

AC/DC Smart Distribution Panel

AC Main Input: 30A Max. 120V, 3600W

AC Output: 6 AC Positions, 20A Max Each

DC Main Input: 70A Max

DC Output: 12 Fused DC Positions (6 Positions Controllable via Power Kit Console App)

Operating Temperature (C): -25℃-60℃

Operating Temperature (F): -13°F-140°F

Dimensions: 8.3x13.9x3.9in (Height x Width x Depth)

Net Weight (lbs): 5.7lbs

Protection Level: IP21

Tests and Certifications: UL Standard, FCC,PSE

Power Kit Console

Touch Screen (Diagonal Measurement): 7 Inch (6x3.4in) (Width x Height)

Power Supply Voltage: 12 VDC

Operating Temperature (C): -20℃-60℃

Operating Temperature (F): -4°F-140°F

Tests and Certifications: UL Standard, FCC,ICES,CE,UKCA,E-Mark,RCM,TELEC,KCC
